CARR® Centritech Separation Systems: CARR U2k®

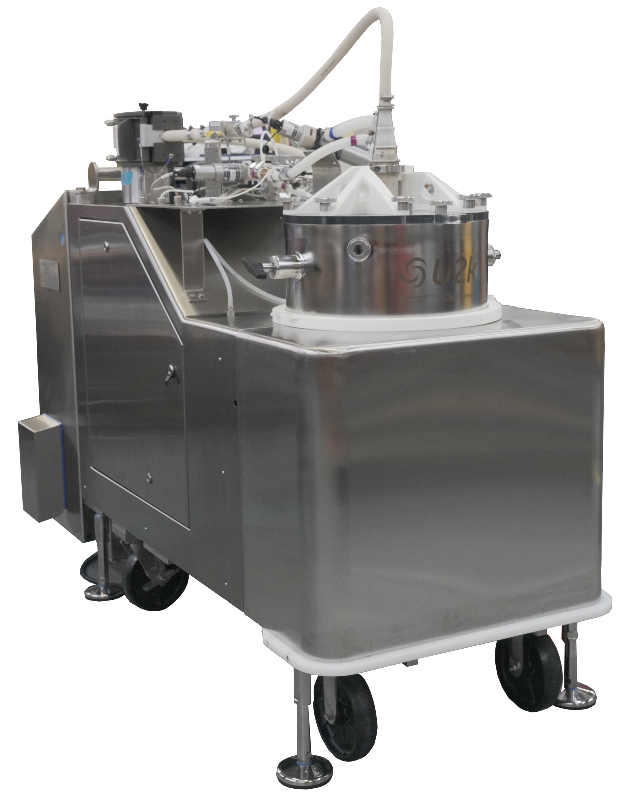

CARR Centritech’s new U2k single-use centrifuge from Pneumatic Scale Angelus is the scaled-up version of our successful UniFuge® product. It uses a gamma irradiated, single-use module that requires NO CIP and NO SIP. All process contact surfaces are supplied as one module and are 100% replaceable after each run. U2k® modules are readily tube welded to your single-use bioreactor connections (customer-specified single-use connectors available upon request). The U2k is completely automated with flexible cycle parameter entry via touch screen HMI. The feed suspension is gently pumped to the module and the cells settle to the outer radius, while the clear supernatant and concentrate are continuously discharged.

Continuous Discharge Single-Use Module

  • Tapered rotor to transport cells
  • Centripetal pump to evacuate cell paste
  • Center feed for low shear operation
  • Concentric tubes to introduce feed and remove supernatant and concentrate
  • USP Class VI components
  • Gamma irradiated

Brand

Market(s)

Brochure(s)

  • Maximum flow rate up to 20 l/min* (5 times flow rate of the UniFuge)
  • Variable g-force up to 4000 x g*
  • Capability to clarify up to 2000 liters of cell cultures in 8 hours or less*
  • Continuous discharge of supernatant and cell culture reduces operation time
  • PLC with color touch screen
  • Low weight of empty separation module after separation
  • Compact footprint and height of centrifuge
  • Easily movable with stainless steel casters
  • Low noise level
  • Optional data acquisition for SCADA System

* Process-dependent

  • Footprint 80cm x 206cm x 200cm high (31” x 81” x 78” high)
  • Total skid weight of 1050 kg (2300 lbs.)
  • Weight of empty separation disposable module less than 13 kg (28 lbs)
  • Allen Bradley® or Siemens® PLC
  • Allen Bradley® or Siemens® HMI touchscreen 30.7 cm (12.1”)
  • Clean dry air supply 6 bar (90 psi) @ 1 SLPM
  • Maximum case pressure (for cooling) 6.9 bar (100 psi)
  • Three phase voltage supply:
    • US: 230V/60Hz, 80A or 460V/60Hz, 40A
    • Europe: 400V/50Hz, 46A
    • Japan: 200V/60Hz/50Hz, 90A
    • Others as needed
